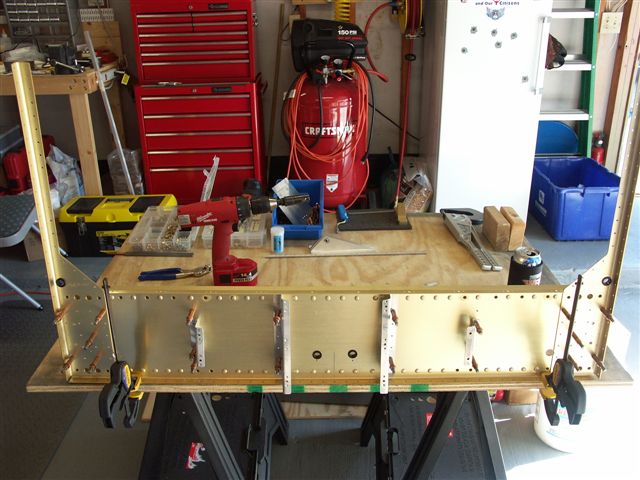

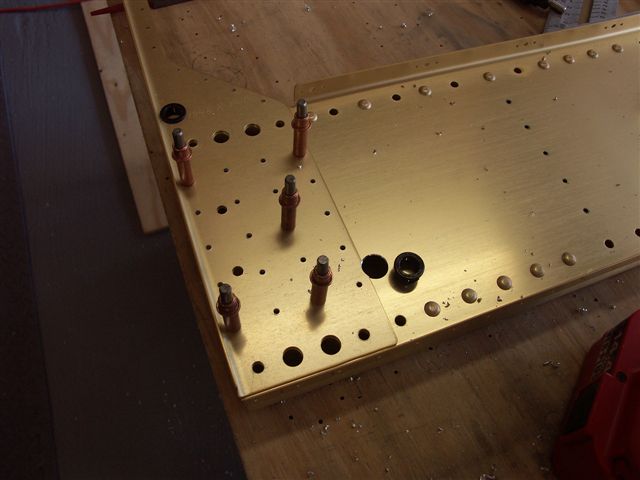

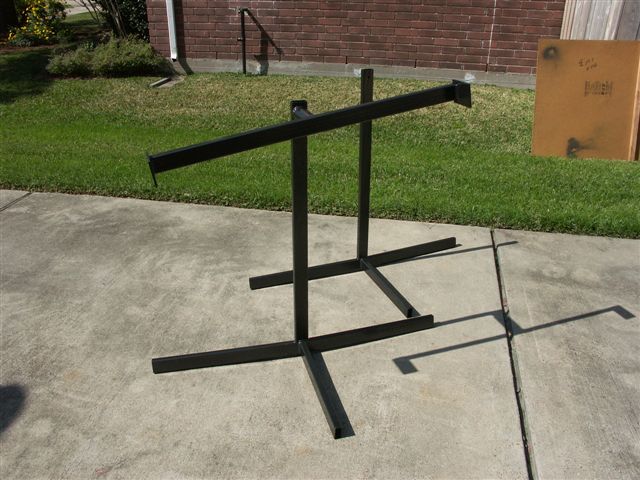

Fuselage March 2005 Updates March 13, 2005 F-704 Bulkhead Back at the 704 bulkhead. I used the unibit to enlarge the snapbushing holes in the main bulkhead front spars. Riveted the nutplates to floor braces that attach to the front bulkhead. Also deburred the edges of the side plates using the diegrider tool. Another tip I picked up on my visit with Jeff on Saturday. The driveway picture is the fuselage stand. The rotating cross member will attach to the firewall and the other end will attach to the tail of the fuselage. Once attached you can rotate the whole body 360 degrees. This website was built to document my work in compliance with the FAA requirements needed to certify my aircraft. My experiences and comments are by no means to be considered as instructions on how to build any aircraft.
