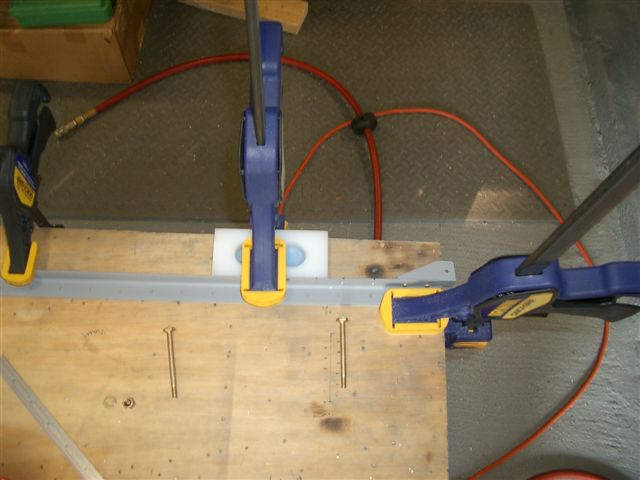

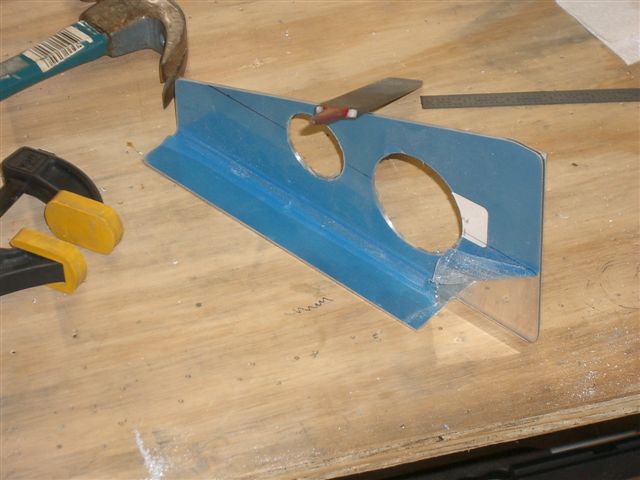

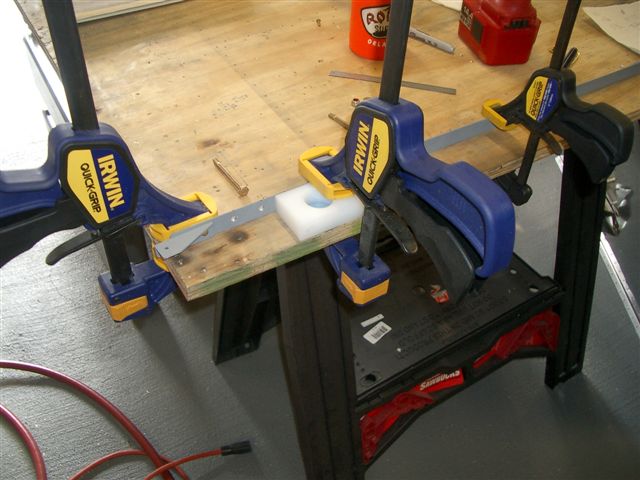

Fuselage June 2006 Updates June 07, 2006 Rudder Pedals..... - 1.0 hrs Dan's site came in handy again. I followed his process to drill three positions for the rudder pedal blocks on the 719 front longeron. I used the same measurements and marked the positions and then used clamps to hold down the block and drilled the holes using the predrilled holes in the blocks in the 3 measured positions. 3 and 1/16, 4 and 1/8 and 5 and 3/16. Next I cut out a space for the firewall recess in the center pedal bracket. First I drilled a #12 hole and then used the band saw to cut up to the hole. The weekends almost here. Hopefully I can get the longerons done and get this thing back together. This website was built to document my work in compliance with the FAA requirements needed to certify my aircraft. My experiences and comments are by no means to be considered as instructions on how to build any aircraft.
