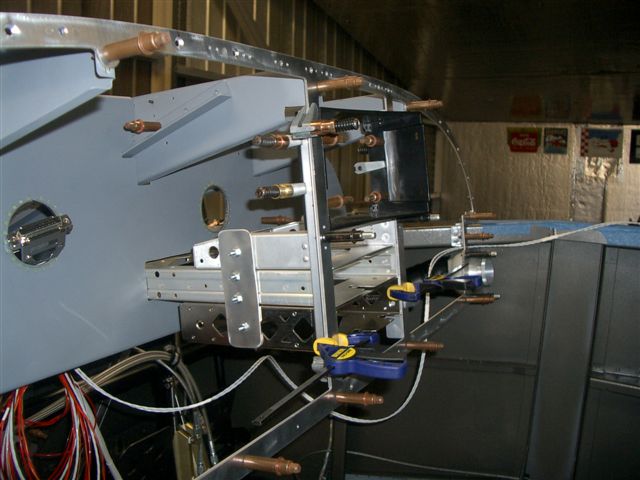

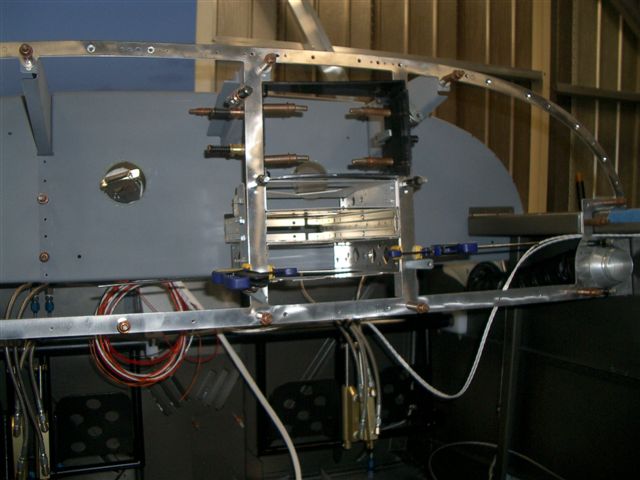

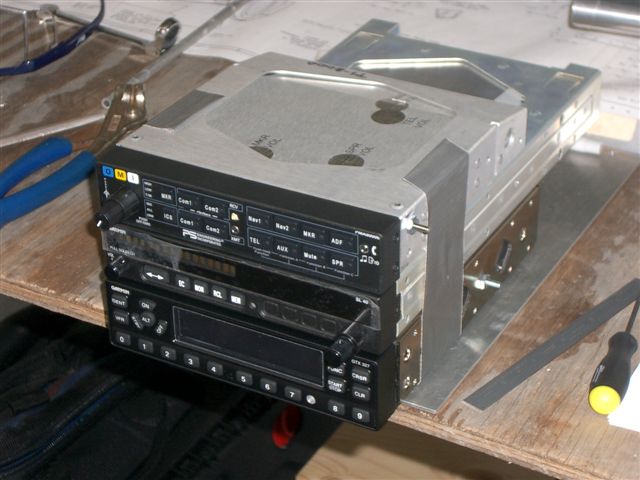

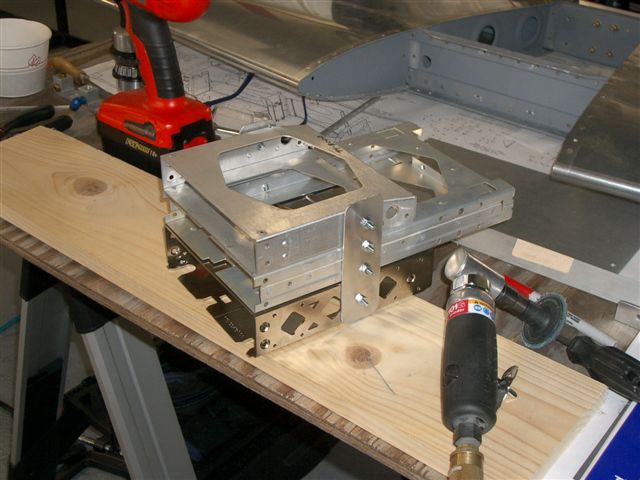

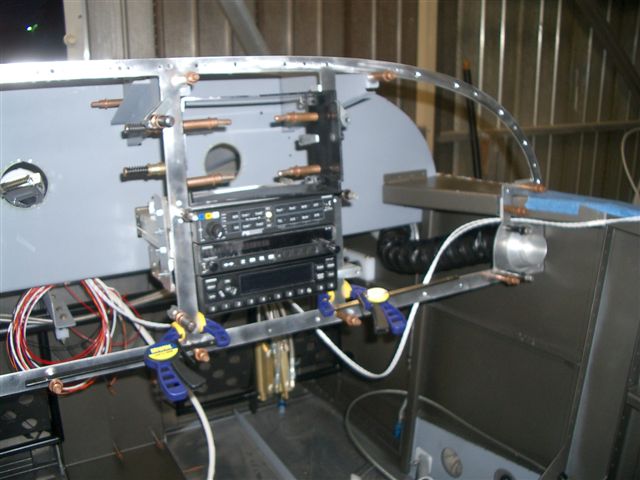

Fuselage July 2007 Updates July 30, 2007 Avionics Trays... - 2.0 hrs Why is it I plan on working on one thing and then change to another. Tonight I was going to run the wire thru the snap bushings down the right side of the fuselage back to the magnatometer. I broght the avonics down to see how well the fit in the trays. Once that was done I ended up working on the trays more. First I fabbed up the side braces to hold the trays in line. Once that was done I drilled them to line up with the mid holes and screwed them in place with 6-32 screws and bolts. I test fit each piece one more time to make sure the screw heads would clear. Then I clamped in place. Once this was done I could see where I needed to mount a rear piece of 3/4 angle in the hole I cut in the subpanel to give the SL-40 strength. I will measure one more time before I final drive for rivets. This website was built to document my work in compliance with the FAA requirements needed to certify my aircraft. My experiences and comments are by no means to be considered as instructions on how to build any aircraft.
