January 09, 2008
More wiring.... - 2.0 hrs

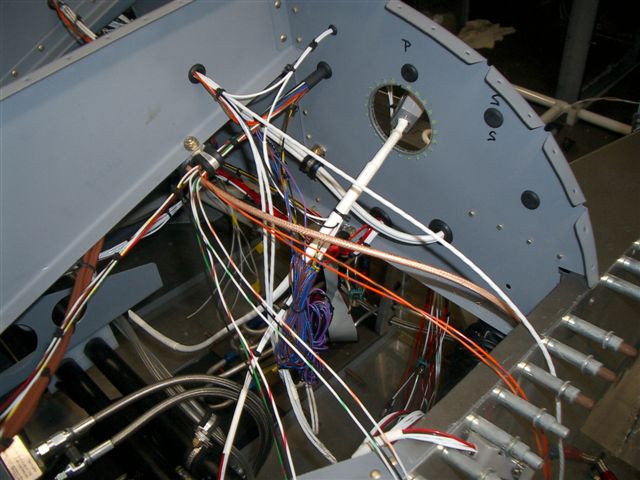

Today I starting using the electrical diagram to sort the wires that run from the EFIS for the different engine analysis and indicators. Turns out most of the wires are going to be on the inside. So I divided up by the different sensors and grouped them accordingly. The second picture shows the bundle going out the firewall is only about 5 wires of the 36 and tiewrapped them.

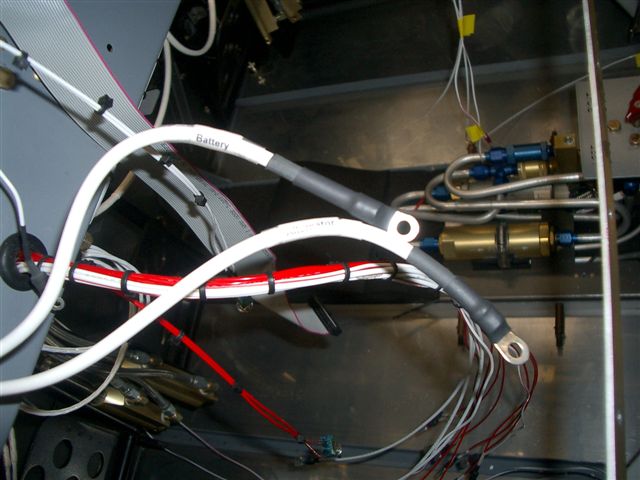

Next I soldered the terminals for the battery and alternator pads on the EXPbus end.

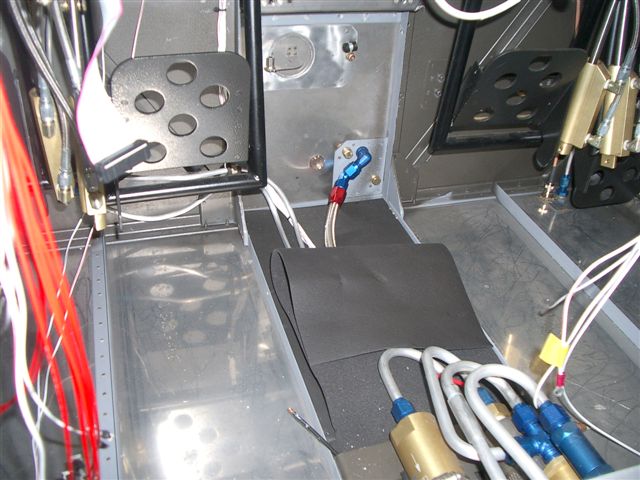

Next I had to open up the center channel again. Need to run the fuel pump wires and wing lighting wires before I button it back up.
