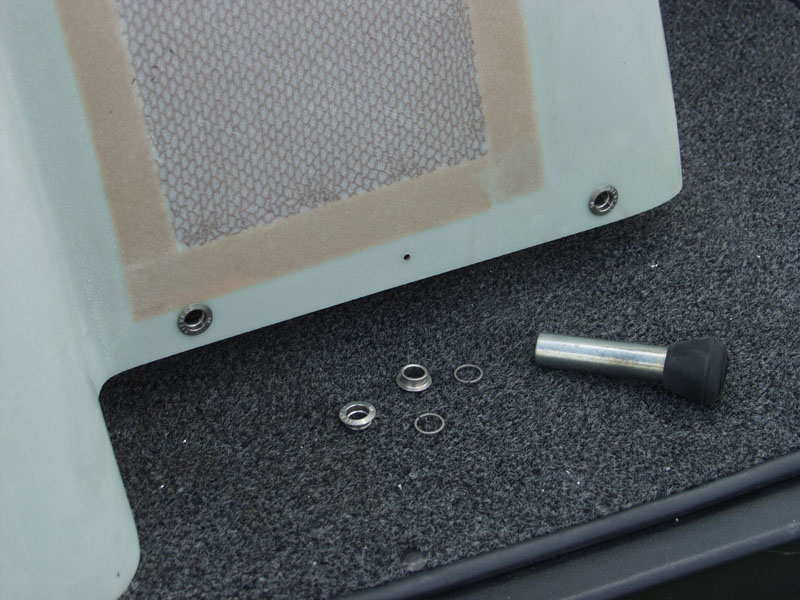

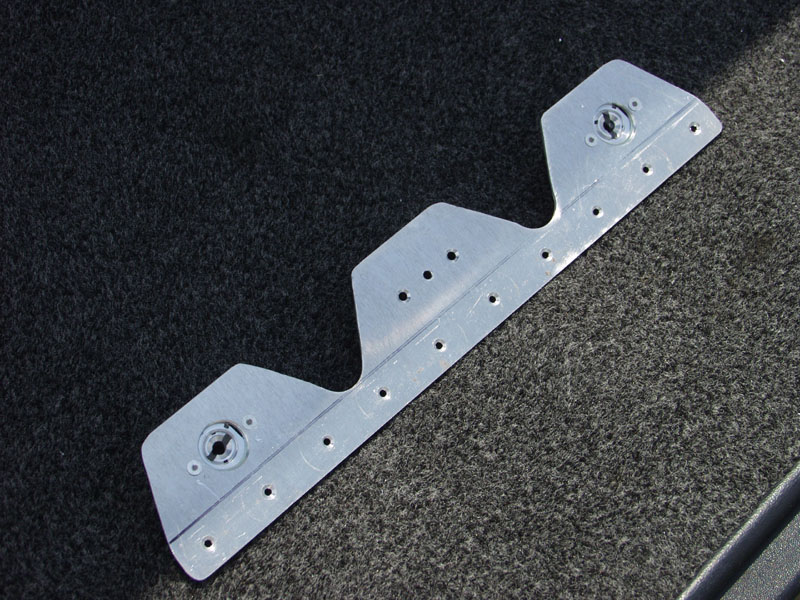

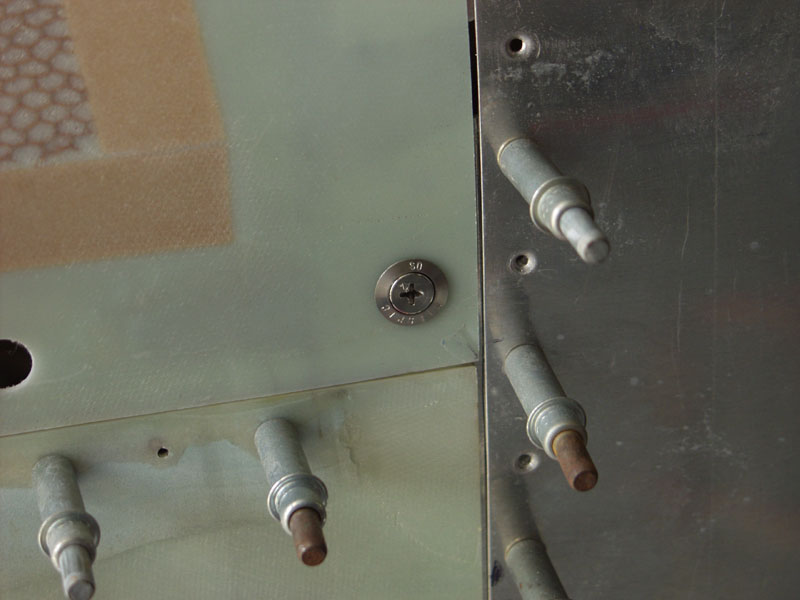

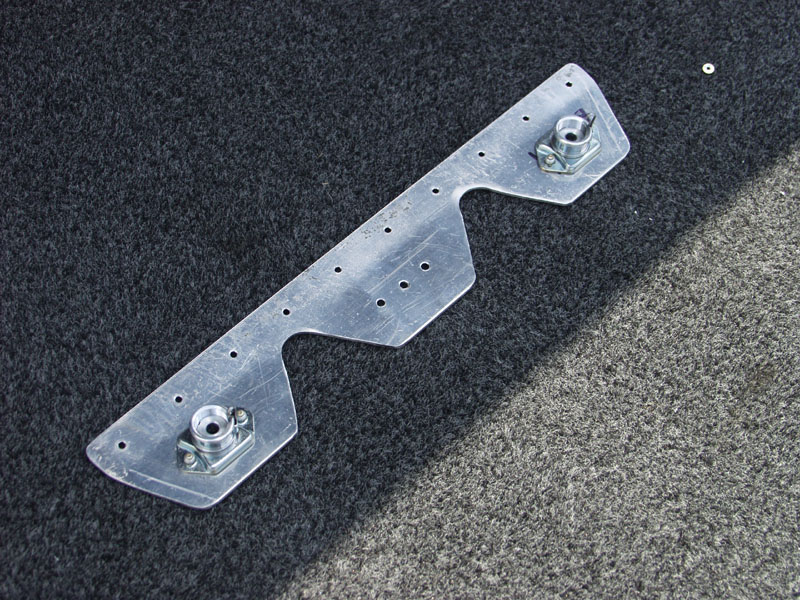

Engine Update May 2009 Updates May 10, 2009 Cowl Work.... - 2.0 hrs Ok so the first step today was to fix the missing rivet holes for the cam mechanism. I used the 2nd template jig by just centering the 15/16 hole in the larger hole in the jig I clamped it in place and driled the rivet holes on both sides of the larger one. Next I removed the cam strips and deburred and countersunk the rivet holes and then riveted the 2 cams in place. Once I reinstall and lock the cams in place I will drill the #30 holes out larger. Now they are what is used for the clecos to hold both cowl pieces in place. On the bottom cowl I still have to drill the rivet holes on the side strips. Next I used the grommet tool to insert the snap rings on 6 of the holes that have the cam mech installed. Then I instered the studs. I need to make sure I can remove the grommets for painting so I am only doing 6 now. Last I reinstalled the cowl top and bottom and locked in the studs. I screwed them in until they were almost flush. The last step will be to pull the lock pins from each cam but I think i will wait until final completion on all cams before I do that. Next I will move on with the other cams enlarging each hole and countersinking the rivet holes. This website was built to document my work in compliance with the FAA requirements needed to certify my aircraft. My experiences and comments are by no means to be considered as instructions on how to build any aircraft.
