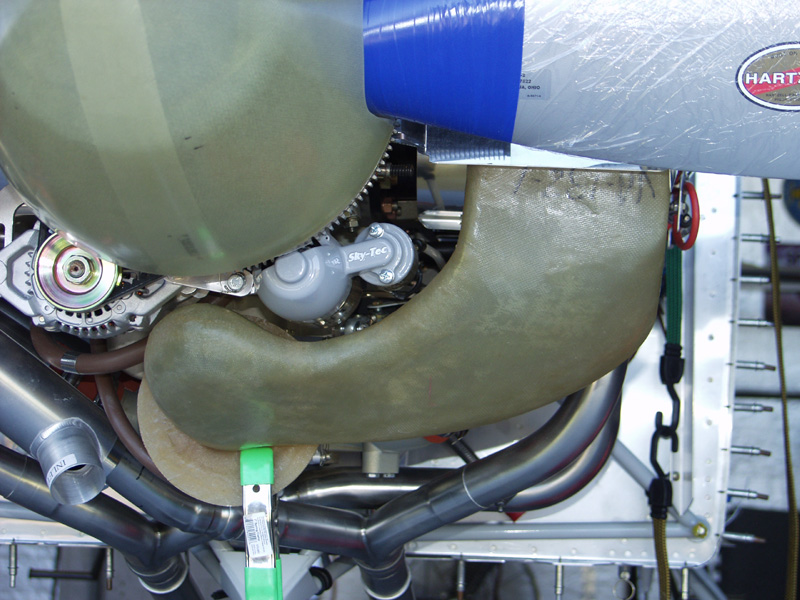

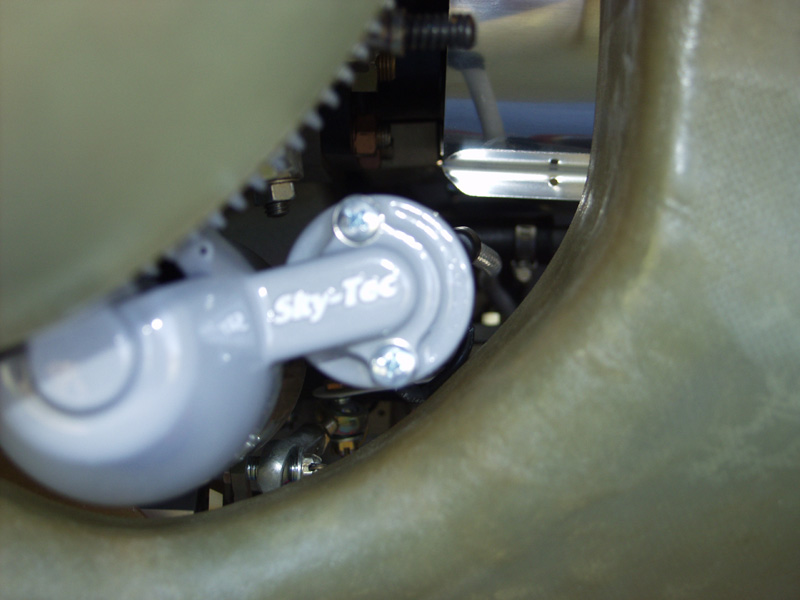

Engine Update March 2009 Updates March 1, 2009 FAB Work.... - 1.0 hrs Stopped by the hangar for a bit of FAB work. Clamped the FAB in place and checked the mark I put the last time to see how the fit is. Started work on the 3 brackets that go around the front baffle pieces. Removed the rear right baffle piece to do a bit more trimming around the rear engine area to allow the screw bracket better alignment. Seems to be some binding back there not allowing the screw hole to show up. Once I get the brackets in place holding the front square I will know exactly what the angle of the left floor inlet will be. Then I can see if I need to trim more off the top edge of the FAB. This website was built to document my work in compliance with the FAA requirements needed to certify my aircraft. My experiences and comments are by no means to be considered as instructions on how to build any aircraft.
