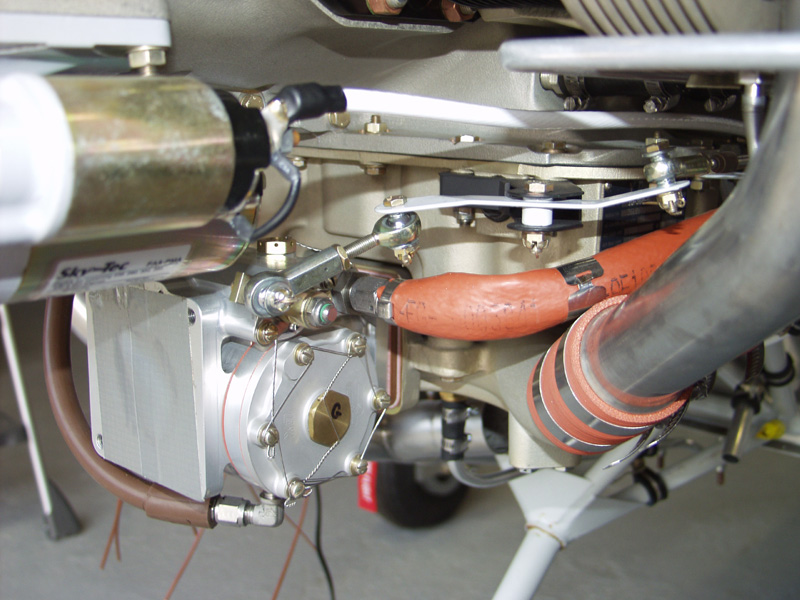

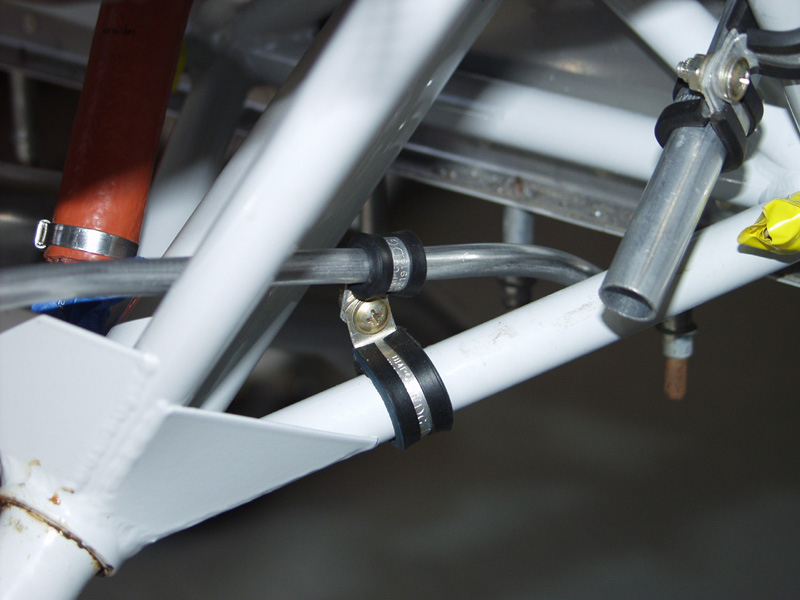

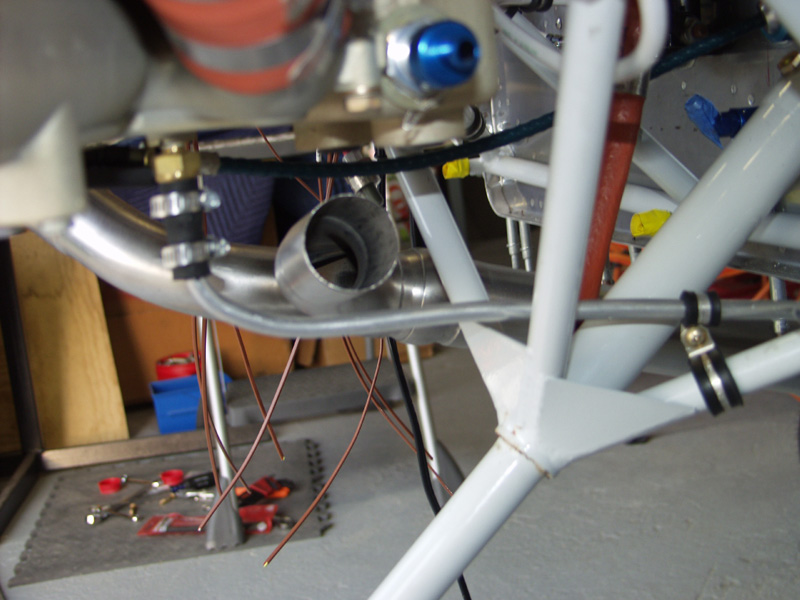

Fuselage June 2008 Updates June 23, 2008 More Misc.... - 2.0 hrs Tonight was not enough time to get back on the tail or the canopy so I just worked on some little things in the engine area. First off I put the cotter pins on the mixture linkage bolts. Next I worked on the sniffle valve. Vetterman recommends you remote mount a piece of tubing back away from the exhaust. I put the right rear cylinder exhaust on to measure clearance. Cut some rubber tubing to length from the sniffle valve and used hose clamps per the instructions. I clamped the tubing at the rear to dump between the 2 exhaust pipes. Should keep it really tight. At the end it was one of those sunsets that I wish I would of caught a little sooner. This website was built to document my work in compliance with the FAA requirements needed to certify my aircraft. My experiences and comments are by no means to be considered as instructions on how to build any aircraft.
