Fuselage August 2008 Updates
August 31, 2008
More Sideskirt Drilling.... - 5.0 hrs

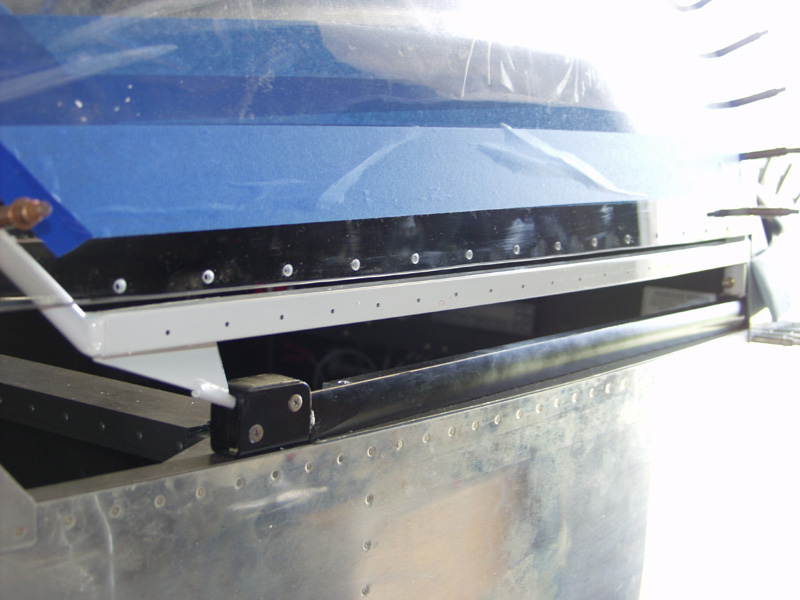

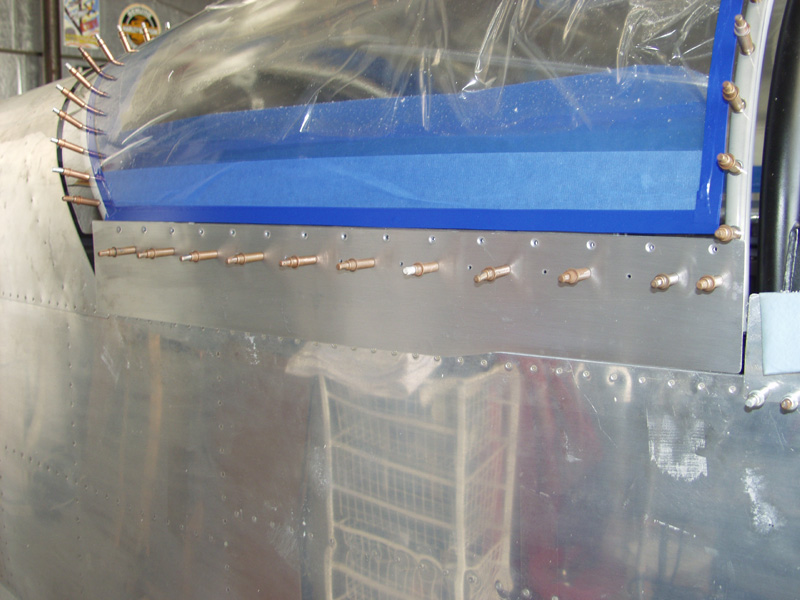

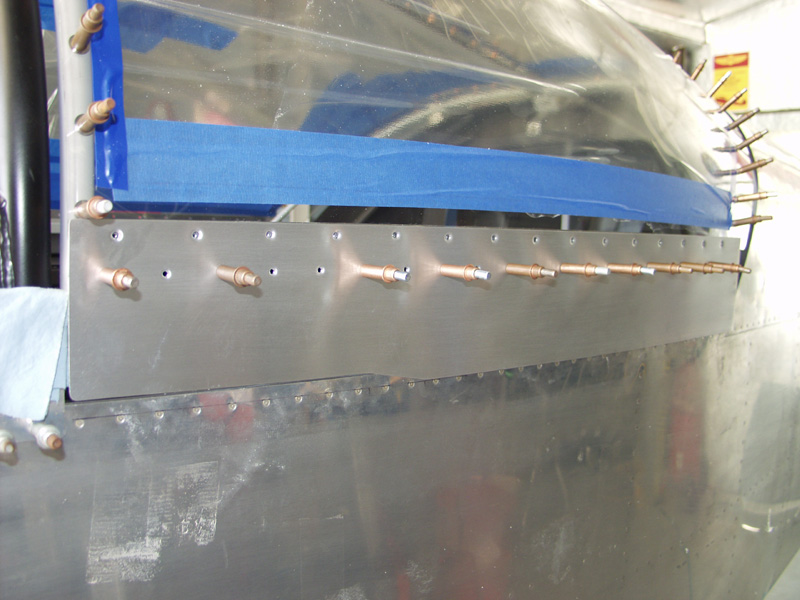

First I drilled the sideskirts thru the glass with a #40 drill bit. I removed the sideskirts and enlarged the holes in the canopy to 5/32.

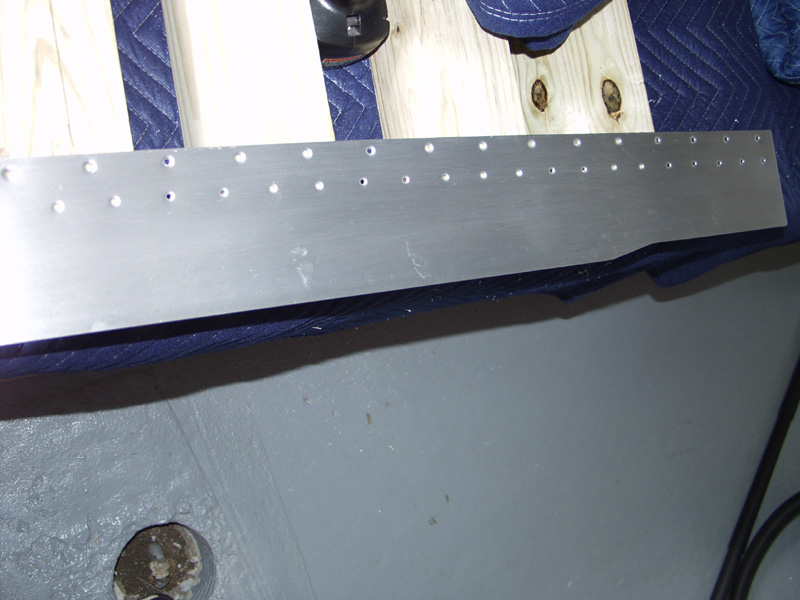

Next I enlarged the sideskin holes to #30. Removed the skinskins and the piece that sits behind the skirts and counter sinked those and then dimpled the skinskirts.
While the skirts were off I used a scothbrite bad to clean them up and prepped to prime and paint. The back of the skirts will be painted black to match the canopy frame.
Next I fit the fiberglass aft skirts for fitting. Still not sure how this is going to work yet.
